25 Pack

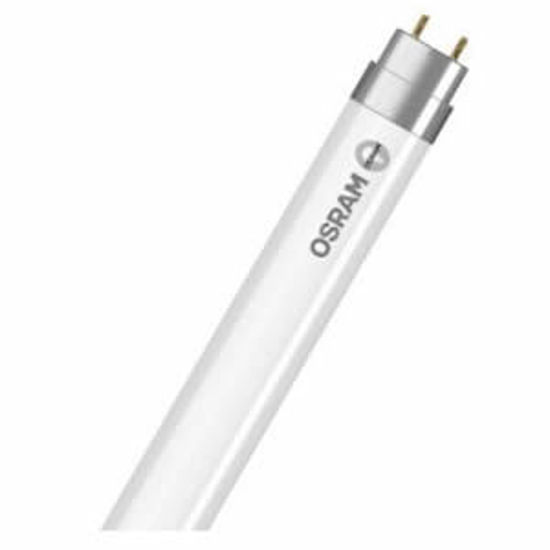

- Osram LED SubtstiTUBE T8 16W 240V Non Dimmable Tubes (Sold as 25)
– No bending thanks to glass technology
– Quick, simple and safe replacement without rewiring
– Energy savings of up to 65 % (compared to T8 fluorescent lamp on CCG)
– Instant-on light, therefore ideally suitable in combination with sensor technology
– Very high resistance to switching loads
– Also suitable for operation at low temperatures
Areas of Application
– General illumination within ambient temperatures from
– 20…+45 °C
– Corridors, stairways, parking garages
– Cooling and storage rooms
– Domestic applications
– Industry
– Warehouses
– Supermarkets and department stores
Product Features
– LED alternative to classic T8 fluorescent lamps in CCG luminaires
– Uniform illumination
– Mercury-free and RoHS compliant
– Luminous efficacy: up to 105 lm/W
– Tube made of glass
- Rated lamp life time 30000h
- Base G13
Dimensions
Tube diameter 27.5 mm
Base diameter 25.7 mm
Product weight 215.00 g
Overall length 1212 mm
- Available in Warm White (3000K) , Cool White (4000K) and Daylight (6500K) colours
Model No | Description | Colour Temp |
4058075052109 | ST8V-1.2M 16W/830 230V EM 25X1 G7AUOSRAM | Warm White |
4058075052123 | ST8V-1.2M 16W/840 230V EM 25X1 G7AUOSRAM | Cool White |
4058075052147 | ST8V-1.2M 16W/865 230V EM 25X1 G7AUOSRAM | Daylight |
Equipment/ Accessories:
Suitable for operation with low-loss and conventional control gears
Safety Advise:
Not suitable for operation with electronic control gear.
Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
