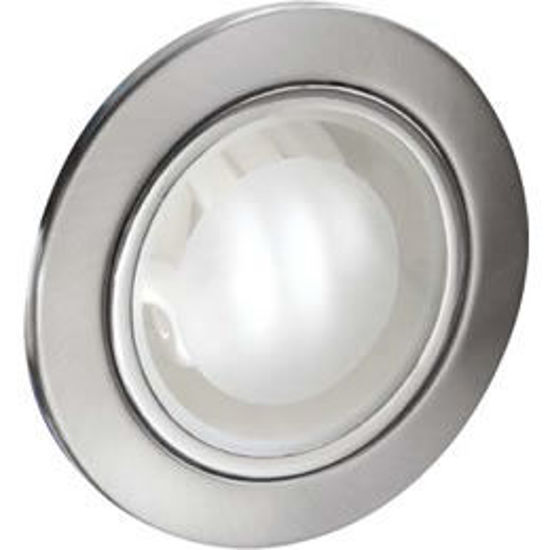

Dimmable CFL Energy Efficient Downlights (4 Pack)

*
$400.00 incl tax
10 Pack

- Dimmable CFL Energy Efficient Downlights (10 Pack)

Features
- Up to 80% Energy saving.
- Replaces ineffi cient halogen downlights.
- Sealed glass front for soft low glare lighting.
- Designed to eff ectively reduce room heat loss into the ceiling cavity.
- Side entry ideal for limited roof space.
- Each model is adjustable to suit a variety of lamps (ie. MALC6 - 11W & 15W).
- MALC5 can be installed in most existing twist lock gimble ceiling holes.
- The MALC 5, 6, 7 have been tested and can be covered with thermal insulation
  (ie. no requirement for 200mm isolation from insulation and/or structural members).
- Energy Saving Dimmable Lamp included

The Nelson Dimmable CFL will function with the following dimmers (HPM, 400T, 500E, 1000T, 1000E, Clipsal 32E 450TM, Legrand 1000VA 03657). The circuitry within this Energy Saving Lamp has been designed to reduce the risk of damage to the dimmer in the event of lamp failure. Dimmable CFLs behave diff erently with different dimmers.

Dimensions
Products
A
B
C1
C2
Cutout ø
MALC5
97
111
164
178
93
MALC7
87
147
236
268
133
Materials/ Finish
Frame
Mild steel
Fixture
White/ Stainless steel finish
Technical
Designed to
comply with
AS/NZS 60598.1:2003
AS/NZS 60598.2.2:2003
Class rating
Class 1 and 2 electrical
IP
20
MELQ11
=60W Incandescent
MELQ15
=75W Incandescent
MELQ20
=100W Incandescent
Rated Average Life*
10,000 Hours
Colour Temperature
= 4000k (Cool white)
Input Voltage
240VAC
Fixture Dimensions
Product
Outer Diameter
Cut out hole
MALC5
110mm
92mm
MALC7
145mm
133mm

Product
Product Description
Equivalent Incandescent Watt*
CO2 Saving
Lamp range suitable for fixture
Price
MALC5BCD
11W dimmable downlight kit with Brushed
Chrome fixture
60W
ES
451Kg
11W
$400.00
MALC6WHD
15W dimmable downlight kit with White fixture
75W
ES
550Kg
11W, 15W
$480.00
MALC7BCD
20W dimmable downlight kit with Brushed
Chrome fixture
100W
ES
736Kg
15W, 20W
$350.00
