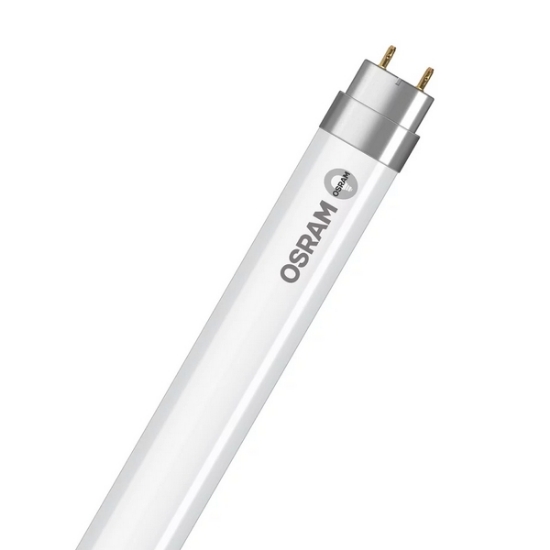

LEDVANCE LED T8 EM Value 5Ft 58W Replacement Tubes 20W 865 G13 (Sold as 25)

LEDVANCE LED T8 EM Value 5Ft 58W Replacement Tubes 20W 865 G13 (Sold as 25)

Product benefits

• No bending thanks to glass tube
• Energy savings of up to 68 % (compared to T8 fluorescent lamp on CCG)
• Quick, simple and safe replacement without rewiring
• Instant-on light, therefore ideally suitable in combination with sensor technology
• Very high resistance to switching loads
• Also suitable for operation at low temperatures

Areas of application

• General illumination within ambient temperatures from -20…+45 °C
• Corridors, stairways, parking garages
• Industry
• Warehouses
• Cooling and storage rooms
• Domestic applications
• Supermarkets and department stores

Product features

• LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
• Low flicker according to EU 2019-2020 (SVM =0.4 / PstLM =1)
• Single and tandem operation on conventional control gear (0.6 m version)
• Tube made of glass
• Mercury-free and RoHS compliant
• Uniform illumination
• Type of protection: IP20

Specifications:

• Nominal wattage: 20 W
• Light color (designation): Daylight
• Color temperature: 6500 K
• Light color: 865
• Beam angle: 160 °
• Base (standard designation): G13
• Dimmable: No
• Luminous flux: 2400 lm
• Overall length: 1514.20 mm
• Diameter: 28.00 mm
• Maximum diameter: 27.5 mm

Equipment / Accessories

• Suitable for operation with low-loss and conventional control gears

Legal advice

• When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

• Not suitable for operation with electronic control gear.
• Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
