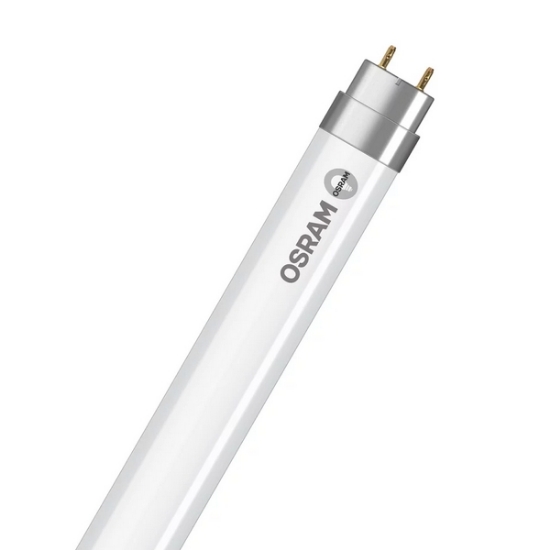

LEDVANCE LED T8 SubstiTube Value 4 Ft 36W Replacement Tubes 16W 840 G9 (Sold as 10)

LEDVANCE LED T8 SubstiTube Value 4 Ft 36W Replacement Tubes 16W 840 G9 (Sold as 25)

Product benefits

• No bending thanks to glass tube
• Energy savings of up to 68 % (compared to T8 fluorescent lamp on CCG)
• Quick, simple and safe replacement without rewiring
• Instant-on light, therefore ideally suitable in combination with sensor technology
• Very high resistance to switching loads
• Also suitable for operation at low temperatures

Areas of application

• General illumination within ambient temperatures from -20…+45 °C
• Corridors, stairways, parking garages
• Industry
• Warehouses
• Cooling and storage rooms
• Domestic applications
• Supermarkets and department stores

Product features

• LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
• Low flicker according to EU 2019-2020 (SVM =0.4 / PstLM =1)
• Single and tandem operation on conventional control gear (0.6 m version)
• Tube made of glass
• Mercury-free and RoHS compliant
• Uniform illumination
• Type of protection: IP20

Specifications:

• Nominal wattage: 16 W
• Light color (designation): Cool White
• Color temperature: 4000 K
• Light color: 840
• Beam angle: 190 °
• Base (standard designation): G13
• Dimmable: No
• Luminous flux: 1800 lm
• Overall length: 1213.00 mm
• Diameter: 28.00 mm
• Maximum diameter: 27.5 mm

Equipment / Accessories

• Suitable for operation with low-loss and conventional control gears

Legal advice

• When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

• Not suitable for operation with electronic control gear.
• Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
