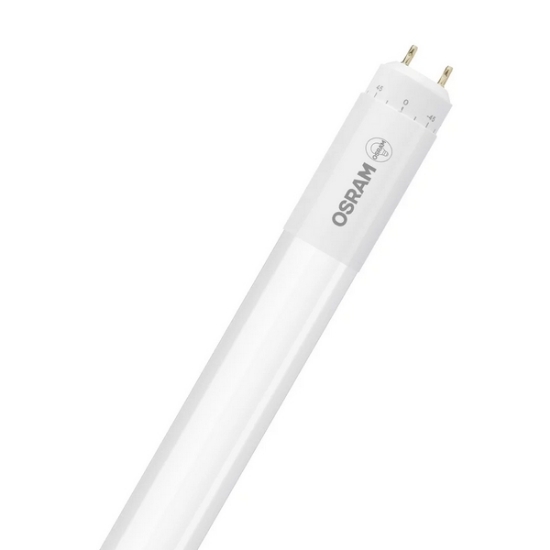

LEDVANCE LED T8 SubstiTube Advanced 36W Replacement Shutterproof Tubes 14W 830 G9 (Sold as 10)

LEDVANCE LED T8 SubstiTube Advanced 36W Replacement Shutterproof Tubes 14W 830 G9 (Sold as 10)

Product benefits

• No bending thanks to glass technology
• Quick, simple and safe replacement without rewiring
• Energy savings of up to 60 % (compared to T8 fluorescent lamp on CCG)
• Instant-on light, therefore ideally suitable in combination with sensor technology
• Very high resistance to switching loads
• Also suitable for operation at low temperatures
• Shatter protection thanks to special PET coating
• Support the implementation of the HACCP concepts from production through to presentation

Areas of application

• General illumination within ambient temperatures from -20…+50 °C
• Illumination of production areas
• Traffic zones and corridors
• Supermarkets and department stores
• Industry

Product features

• LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
• Bright, robust and durable
• Uniform illumination
• Single and tandem operation on conventional control gear (0.6 m version)
• Tube made of glass
• Mercury-free and RoHS compliant
• Type of protection: IP20
• Lamp tube made of glass with splinter protection e.g. for food industry applications

Specifications:

• Nominal wattage: 14 W
• Light color (designation): Warm White
• Color temperature: 3000 K
• Light color: 830
• Beam angle: 190 °
• Base (standard designation): G13
• Dimmable: No
• Luminous flux: 2100 lm
• Overall length: 1212.00 mm
• Diameter: 26.50 mm
• Maximum diameter: 27 mm

Equipment / Accessories

• Suitable for operation with low-loss and conventional control gears

Legal advice

• When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

• Not suitable for operation with electronic control gear.
• Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
