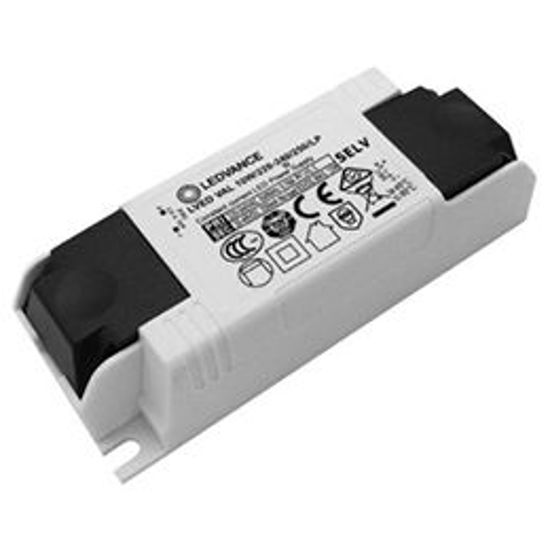

Osram 10W Low Power Factor LED Driver

Part No: 4058075080492
$13.00 incl tax

- Osram 10W Low Power Factor LED Driver
- Constant current LED drivers

Product benefits
- Suitable for space-critical installation thanks to compact functional design
- Easy to install and use

Areas of application
- Hotels, shops, hospitality, residential interiors
- Suitable for luminaires of protection class II
- Suitable for indoor SELV installations

Product features
- With CCC, CE, CB and RCM certificate
- Lifetime: up to 30,000 h
- Reversible overtemperature, overload, short-circuit and open-circuit protection
- Integrated cable clamp for luminaire and independent installation
- Operated with Safety extra-low voltage (SELV): < 60 V
- Type of protection: IP20
- Safety complies with IEC 61347-1, IEC 61347-2-2, IEC 61347-2-13, GB 19510
- Radio interference complies with IEC 55015, GB17743
- Harmonic distortion complies with IEC 61000-3-2, IEC 61000-3-3, GB 17625.1

Technical Data

Electrical data
Nominal voltage220…240 V
Mains frequency50/60 Hz
Power factor λ≥0.5
Nominal output voltage30…48 V
Nominal output current250 mA
Nominal output power10 W
Galvanic isolationSELV
Dimensions & weight
Length86.0 mm
Width32.0 mm
Height23.0 mm
Product weight43.20 g
Colors & materials
Casing materialPlastic
Temperatures & operating conditions
Ambient temperature range-10…+45 °C
Maximum temperature at tc test point80 °C
Max.housing temperature in case of fault110 °C
ECG lifetime30000 h
Overheating protectionReversible
Overload protectionReversible
Short-circuit protectionReversible
Certificates & standards
Approval marks – approvalCB / CCC / CE / RCM
Type of protectionIP20
Logistical data
Temperature range at storage-20…+85 °C
