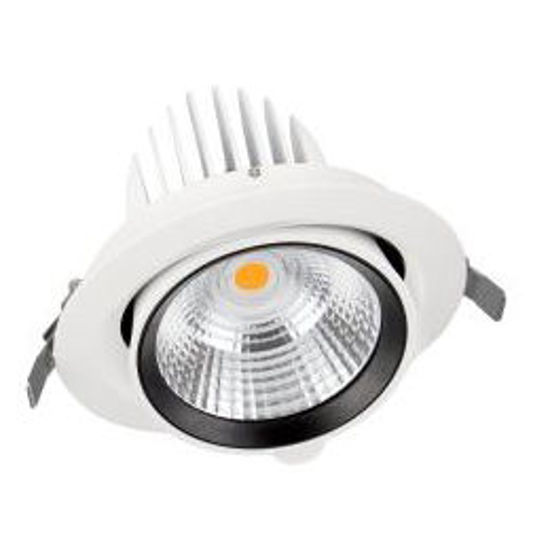

Picture of Osram LED Spot Vario DN 170 35W Cool White 24deg Spotlights (Sold as 4)

Osram LED Spot Vario DN 170 35W Cool White 24deg Spotlights (Sold as 4)

Part No: 4058075104044
Call for pricing

Sold as 4

- Osram LED Spot Vario DN 170 35W Cool White 24deg Spotlights (Sold as 4)
- 35 watts
- Cool White

Product benefits
- Low flicker light thanks to special electronic control gear
- High luminous efficacy
- Die-cast aluminum housing for improved heat dissipation
- Easy replacement of external driver thanks to plug with bayonet lock
- Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
- Shallow mounting depth
- Various options to highlight target areas
- 5 years guarantee

Areas of application
- Accent- and general lighting for all kind of salesrooms
- Retail
- Supermarkets
- Shops, boutiques
- Hotel rooms
- Stairways
- Corridors
- Lobbies

Product features
- Large faceted reflector for high light output
- Beam angle: 24°
- Rotation angle: 0°...350°, tilt angle: 0°...35°
- Diameter of required ceiling cut out: 165...170 mm

Equipment / Accessories
- Driver included


Technical Data

Electrical data
Nominal wattage35.00 W
Operating modeExternal LED driver
Nominal voltage220…240 V
Power factor λ>0.90
Mains frequency50/60 Hz
Max. no. of lum. on circuit break. B16 A15
Max. no. of lum. on circuit break. C10 A9
Max. no. of lum. on circuit break. C16 A15
Inrush current40.0 A
Total harmonic distortion20%
Inrush current time Th50100 µs
Luminaire control gear data
Low flickerYes
ECG - Length153 mm
ECG - Width44 mm
Photometrical data
Color temperature4000 K
Luminous flux3550 lm
Luminous efficacy100 lm/W
Standard deviation of color matching<5 sdcm
Light color (designation)Cool White
Color rendering index Ra>80
Light technical data
Beam angle24 °
Dimensions & weight
Diameter180.0 mm
Height129.0 mm
Product weight1126.00 g
Mounting diameter170 mm
Colors & materials
Body materialAluminum
Product colorWhite
Housing colorWhite
Cover materialPolymethylmethacrylate (PMMA)
Temperatures & operating conditions
Ambient temperature range-20…+45 °C
Lifespan
Number of switching cycles50000
Lifespan L70/B50 at 25 °C50000 h
Lifespan L80/B10 at 25 °C45000 h
Lifespan L90/B10 at 25 °C30000 h
Additional product data
Mounting typeRecessed
Mounting locationCeiling
Low flickerYes
Capabilities
AdjustableYes
DimmableNo
Type of connectionScrew terminal, 2-Pole (L,N)
LED module replaceableNot replaceable
Certificates & standards
Protection class IK (shock resistance)IK03
Glow Wire Test according to IEC 695-2-1650 °C
Photobiological safety group EN62778RG 1
Protection classII
Type of protectionIP20
StandardsCE/CB/ENEC/TÜV SÜD/RoHS
