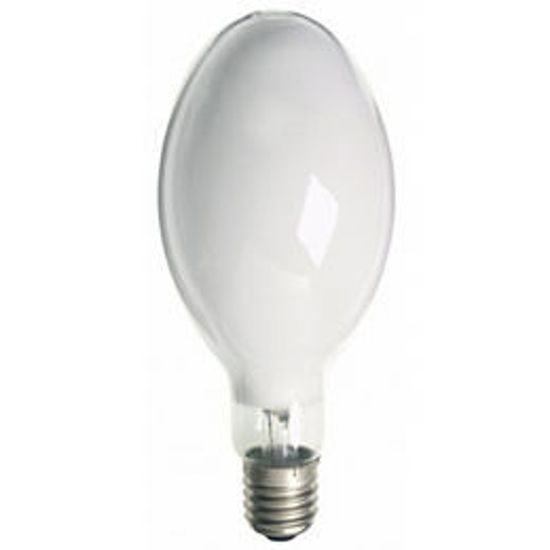

- High Pressure Mercury Vapour Lamps
Features
- Coated elliptical bulb
- High pressure (complies with safety requirements of IEC 62035:2003)
- Full luminous flux occurs approximately five minutes after starting
- Colour temperature of 4000°K
Applications
- For commercial lighting applications where a low cost, long life light source is required
- Commonly used in street lighting, floodlighting and building illumination
- Suitable for use indoors and in enclosed exterior fittings
Burning Position
- Universal
High pressure mercury vapour lamps consist of a quartz mercury vapour discharge tube encased in a glass bulb coated internally with a fluorescent phosphor which converts the UV radiation emitted by the tube into visible light. Although mercury vapour lamps have been replaced in some applications by newer lamp technologies, they are still a desirable light source for exterior and commercial illumination due to their low system cost, long life and high colour temperature.
Model No | Watts | Voltage | Base | Dimensions (mm) | Lumen Output | Carton Qty | Price |
MBFU Mercury Vapour |
11292 | 50W | 240V | ES E27 | 55 x 130 | 1800 | 12 | $10.00 |
18035 | 125W | 240V | ES E27 | 75 x 170 | 6200 | 12 | $10.00 |
11291 | 250W | 240V | GES E40 | 90 x 226 | 13000 | 6 | $17.00 |
14538 | 400W | 240V | GES E40 | 120 x 290 | 23000 | 6 | $17.00 |
