- Pierlite Carlton Colour Select LED Bunker Light
- Lamp Style: LED
- Dimming Technology: Non - Dimmable
- Operating Temperature: 0 to 40deg
- Chip Configuration: SMT
- Available in Black and White colours
Overview -
- IP Rating: IP54
- IK Rating: 04
- Warranty: 2 year
- Voltage: 240V
- CRI: 80deg
- Beam Angle: 120deg
- Dimmable: No
- Finish: Powdercoated
- Lamp Type: LED (PCBA)
- Beam Distribution: Symmetric
Features:
- One-box solution - 3-in-1 colour temperature, bonus decorative caged trim, offers flexibility in look and feel
- Sturdy and robust design - made with die-cast aluminium, frosted glass diffuser and stainless steel screws
- IP54 and IK04 rated - ideal for outdoor application
- Easy to install - rear cable entry and suitable for wall and ceiling
- Sealed diffuser - prevents insects from getting in and reduces maintenance
- Available in 2 sizes and 2 colour housing (white and black)
- Flexible Colour select option 3K/4K/6K
- Ideal for residential, domestic and hospitality applications
Aesthetically pleasing and functional, the new generation of Carlton bunker meets all the required of a well-designed outdoor fitting. With 3 colour temperatures in 1 robust fitting, including a bonus caged trim, this fitting offers the flexibility to customize the right look and feel for different areas in the same install.
IP Rating | IK Rating | Warranty | Voltage | CRI | Beam Angle | Dimmable | Finish | Lamp Type | Beam Distribution |
IP54 | 4 | 2 Year | 240V | 80 | 120deg | No | Powdercoated | LED (PCBA) | Symmetric |

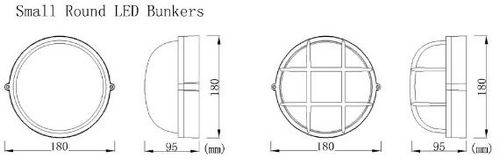

Model No | Dimensions H x W x L (mm) | Lumen Output | Colour | Circuit Wattage | Grill | Weight | Price |

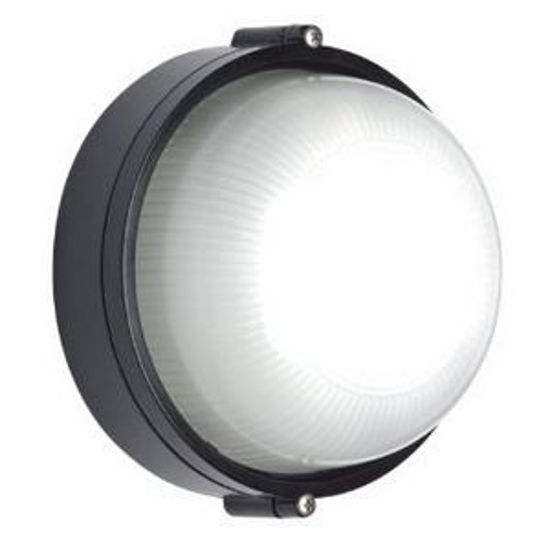

CB2746466 | 95mm | 650Lm | Black | 9.0W | Without Grill | 0.72kg | $46.00 |
CB2746567 | 95mm | 650Lm | White | 9.0W | Without Grill | 0.72kg | $46.00 |

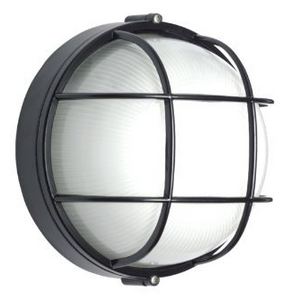

CB2746870 | 125mm | 1100Lm | Black | 14.5W | With Grill | 1.28kg | $70.00 |
CB2746971 | 125mm | 1100Lm | White | 14.5W | With Grill | 1.28kg | $70.00 |
Please note: Only 14.5W model comes with Grill
