- Pierlite ECO LED Batten Gen2 Batten
- Wide steel body covers up conventional batten fixing point
- Opalised diffuser for even light distribution
- Quick and easy to install with unpluggable insect proof sealed LED module
- Available in 4 sizes/wattage combinations: 600mm/20W, 1200mm/20W, 1200mm/40W and 1500mm/50W
- Available in 4000K and 6500K, 54000hrs to L70
- Non dimmable
- Wireguard option available, WG2 and WG4
- VEET and IPART approved
Oversview:
- IP Rating: 20
- IK Rating: 06
- Warranty: 4 Year
- Voltage: 240V
- CRI: 80
- Colour: White
- Beam Angle: 120deg
- Dimmable: No
- Finish: Powdercoated
- Lamp Type: LED (PCBA)

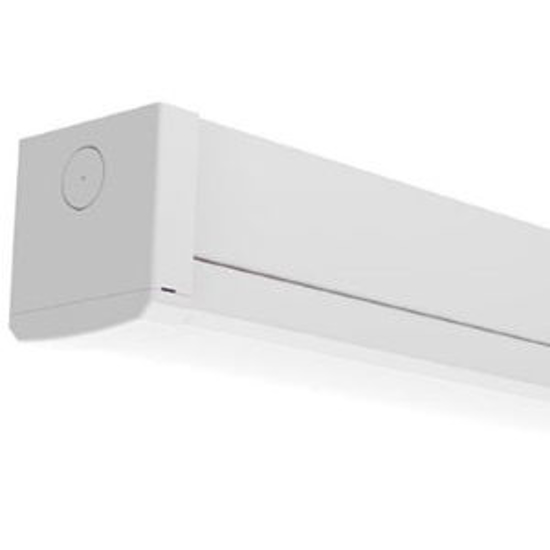

Pierlite ECO LED Batten Gen2 Batten
Designed with the professional installer in mind, ECO LED Batten is the ideal batten for clean, even light distribution with quick to fit one piece sealed LED module.

IP Rating | IK Rating | Warranty | Voltage | CRI | Colour | Beam Angle | Dimmable | Finish | Lamp Type |
20 | 6 | 4 Year | 240V | 80 | White | 120deg | No | Powdercoated | LED (PCBA) |

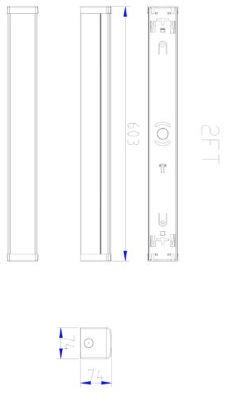

Item Code | Weight | Dimensions H x W x L (mm) | Lumen Output | Colour Temperature | Beam Distribution | Circuit Wattage | Dimming Technology | Wattage | Chip Configuration | Operating Temperature |
ECOBAT204E4 | 1.8 kg | 74 x 74 x 1164 | 2170Lm | 4000K | Symmetric | 20W | Non - Dimmable | 20W | PCB | 0 to 40deg C |
